2018 SunPower SPR-E20-435-COM S

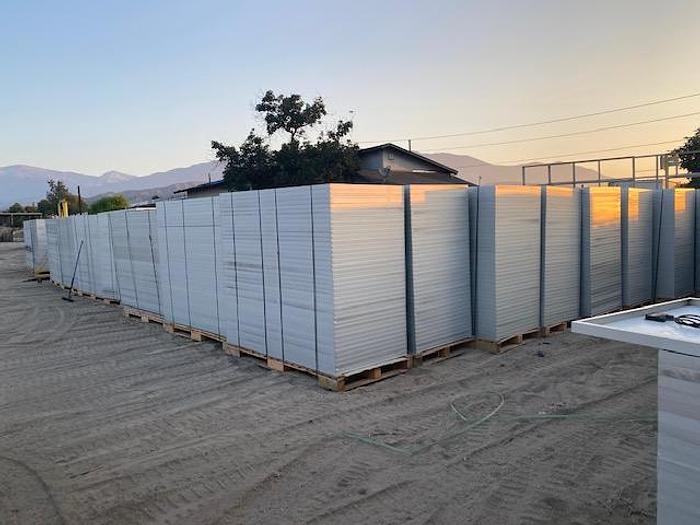

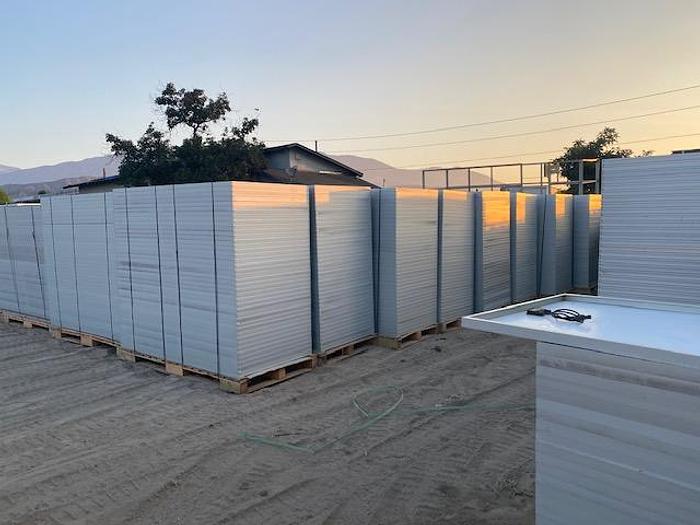

Used panels 100% operational came out of a commercial installation.

128 Cell

DC Electrical Characteristics

STC Power Rating 435W

PTC Power Rating 400.2W 1

STC Power per unit of area 18.7W/ft2 (201.2W/m2)

Peak Efficiency 20.12%

Power Tolerances -5%/+5%

Number of Cells 128

Nominal Voltage not applicable

Imp 5.97A

Vmp 72.9V

Isc 6.43A

Voc 85.6V

NOCT 45°C

Temp. Coefficient of Isc 0.05%/K

Temp. Coefficient of Power -0.38%/K

Temp. Coefficient of Voltage -0.235V/K

Series Fuse Rating 15A

Maximum System Voltage 1000V

Mechanical Characteristics

Type Monocrystalline Silicon

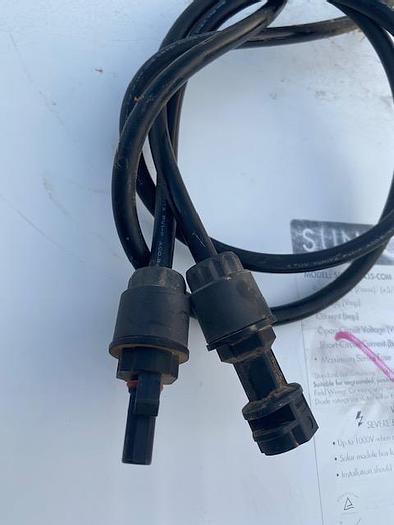

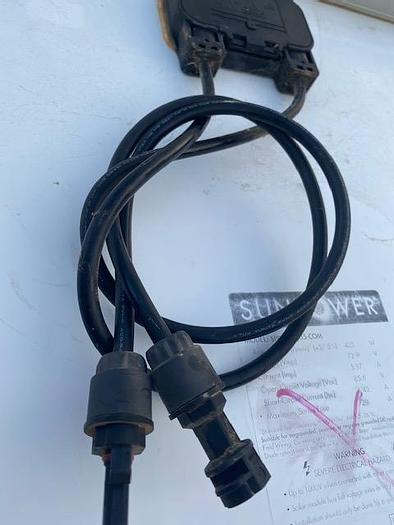

Output Terminal Type Multicontact Connector Type 4

Output Cable Wire Gauge 12 AWG

Output Cable Wire Type PV Wire

Output Cable Wire Length 26.8in (680mm)

Frame Color Clear

Backsheet Color data not available

Length 81.4in (2,067mm)

Width 41.2in (1,046mm)

Depth 1.8in (46mm)

Weight 56lb (25.4kg)

Installation Method Rack-Mounted

Warranty and Certifications

80% Power Output Warranty Period 25yrs

90% Power Output Warranty Period 25yrs

Workmanship Warranty Period 25yrs

UL 1703 Fire Classification Type 2

Compliances UL 1703, IEC 61215, IEC 61646, IEC 61730, CEC, TUV

CSI Listed Yes
