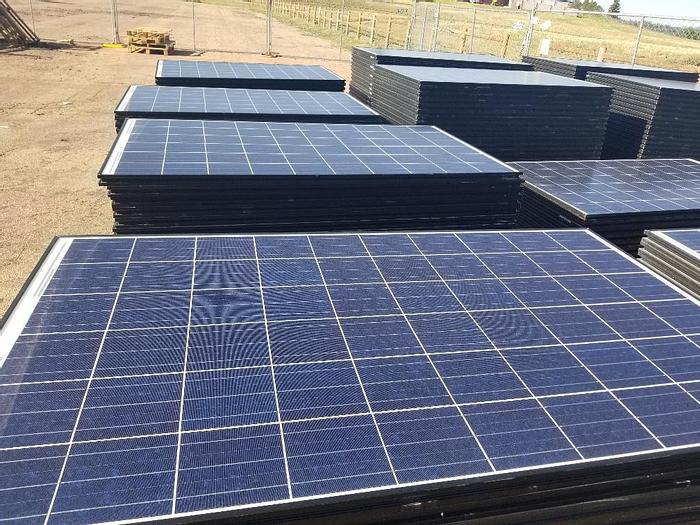

2016 REC REC260-PE-Zlink

 Electrical Characteristics

STC Power Rating 260W

PTC Power Rating 234.3W 1

STC Power per unit of area 14.6W/ft2 (157.6W/m2)

Peak Efficiency 15.76%

Power Tolerances 0%/+2%

Number of Cells 60

Nominal Voltage not applicable

Imp 8.5A

Vmp 30.7V

Isc 9.01A

Voc 37.8V

NOCT 45.7°C

Temp. Coefficient of Isc 0.02%/K

Temp. Coefficient of Power -0.4%/K

Temp. Coefficient of Voltage -0.102V/K

Series Fuse Rating 15A

Maximum System Voltage 600V

Mechanical Characteristics

Type Polycrystalline Silicon

Output Terminal Type Multicontact Connector Type 4

Output Cable Wire Gauge 12 AWG

Output Cable Wire Type PV Wire

Output Cable Wire Length 35.4in (900mm)

Frame Color Clear

Backsheet Color White

Length 65.6in (1,665mm)

Width 39in (991mm)

Depth 1.5in (38mm)

Weight 39.7lb (18kg)

Installation Method Rack-Mounted

Warranty and Certifications

80% Power Output Warranty Period 25yrs

90% Power Output Warranty Period 12yrs

Workmanship Warranty Period 10yrs

UL 1703 Fire Classification Type 1

Compliances UL 1703, IEC 61215, IEC 61730, TUV

CSI Listed Yes
