2018 Toyota 9BDRU15

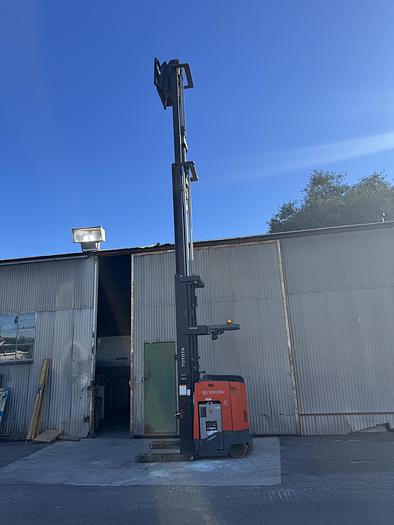

TOYOTA 9BDRU15 Standup Electric Double Deep Reach Truck Forklift 137"/302" Mast

• 36-Volt electrical system
• Variable-speed lift and lowering
• Electric power-steering motor
• Two-speed reach/retract
• Current-controlled proportional valve
• Multifunction control handle

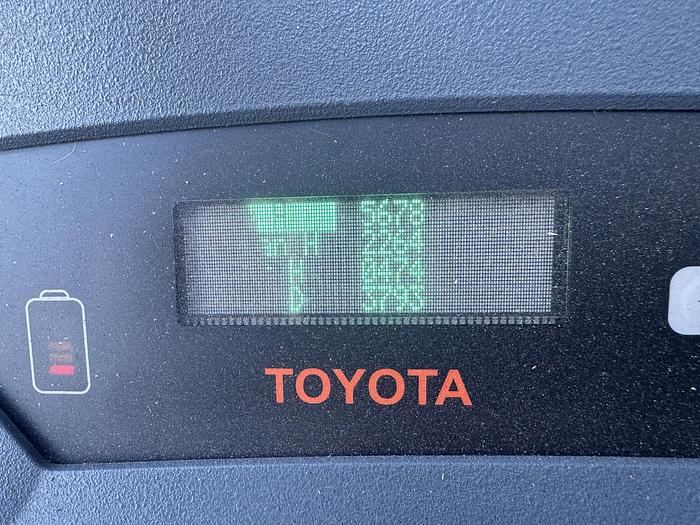

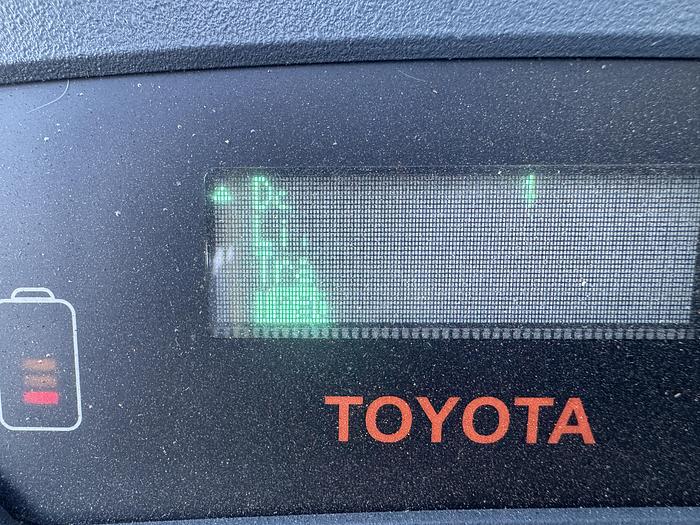

• Interactive digital display panel
• Multifunctional hour meter
• Time & date display
• Programmable travel, acceleration, lift/lower speeds, reach/retract
• Fault code memory
• AC-powered drive system with torque control
• AC hydraulic system
• Lowering flow limiter
• Lift system relief valve
• UL-approved type “E” rating
• OPERABILITY
• 180Àö electronic power steering
• Auto position hold
• Flexible dock stance operator compartment
• Wide-view 3-stage mast (FSV)
• Hydraulic cushioned mast staging
• Hydraulic cushioned retract system
• Hydraulic fork deceleration at floor level
• Lift slow down at max lift
• 33"– 50" base leg openings (ID)– In 1" increments2, 3
• Polyurethane drive tire (13.5" dia. x 6")
• Tandem articulated, bolt-on polyurethane load wheels (5" x 3.63")
• Polyurethane caster wheel (dual)
• Proportional handle plugging
• Tapered toe box (5" x 3.63")
• (9BDRU13, 9BDRU15 only)
• Universal operator presence pedal with cushioned pad
• Electric disc brake
• Regenerative braking

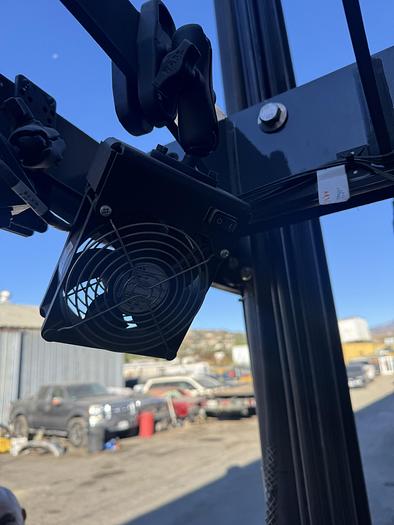

• Ventilated tractor compartment with high-capacity cooling fan
• 48" tilting load backrest extension
• (5° forward/3° backward)6
• ITA Class II hook-type carriage (32" wide)
• Anti-static ground strap
• Adjustable speed limit above Free-Lift (0 – 3.5 mph)
