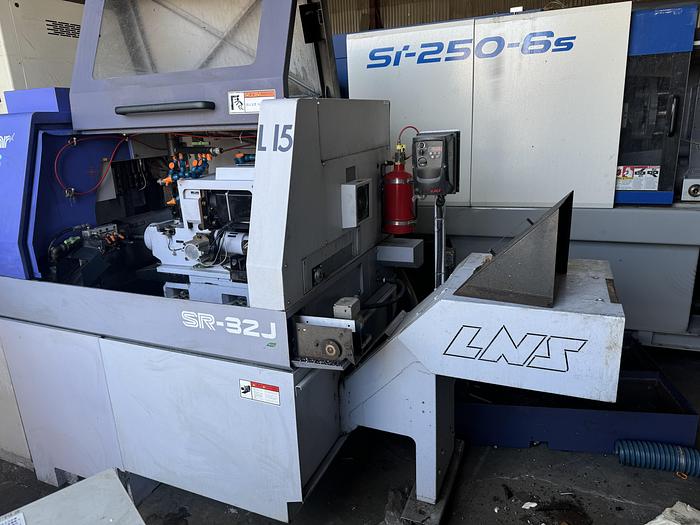

2015 Star SR-32J

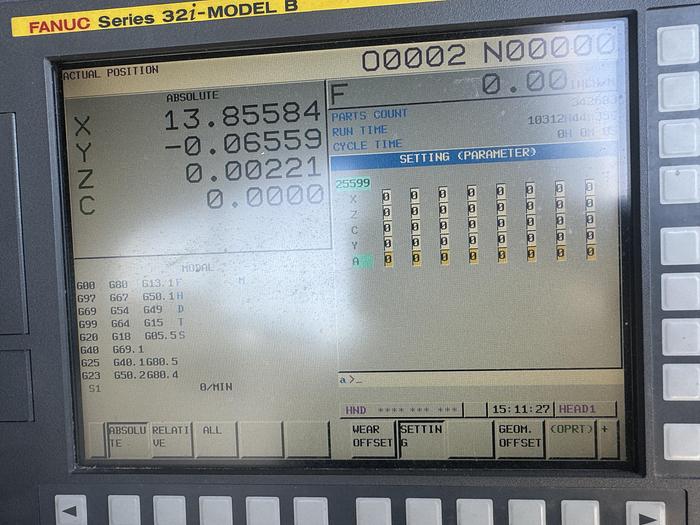

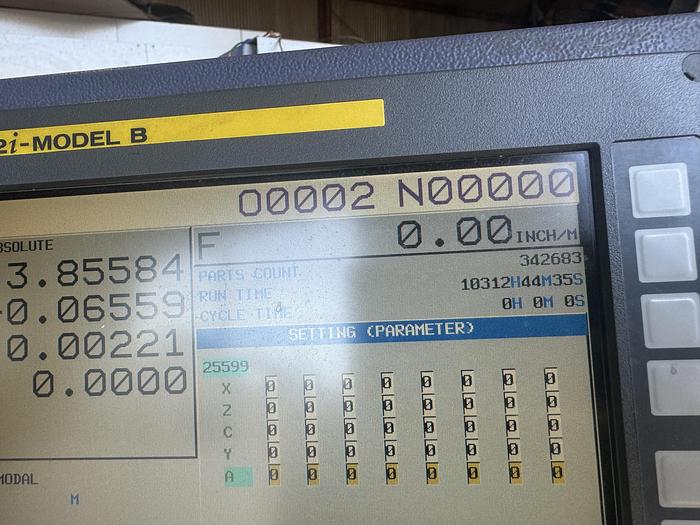

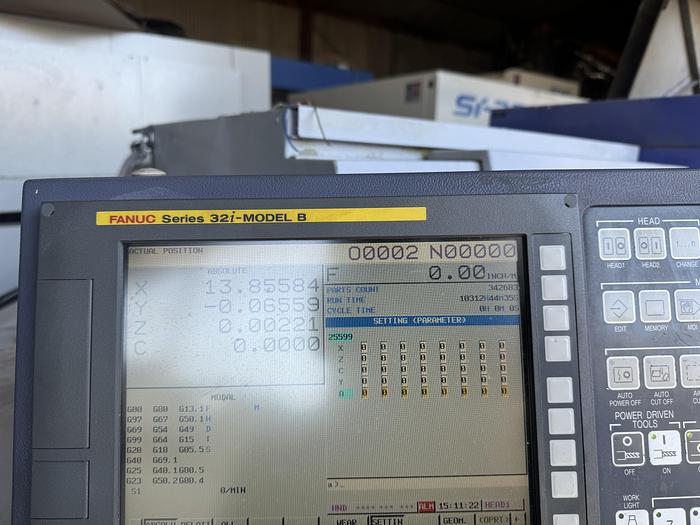

2015 Star Sr32J. Fanuc 32i B

Headstock stroke

Standard: 310mm (12-13/64")

 - with RMGB Unit: 280mm (11-1/32")

Tool Shank: 16mm x 95-155mm

4-Spindle Sleeve Holder

Drilling Capability: 13mm (1/2")

Tapping Capability: M12xP1.75

Die Cutting Capability: M10xP1.5

Power Driven Attachment

Drilling Capability: 8mm (5/16")

Tapping Capability: M6xP1.0

Milling Capability: 10mm (25/64")

Main Spindle Speed: 7,000 RPM

Main Spindle Motor (continuous/30min): 5.5kw/7.5kw

Power-Driven Att. Spindle Speed: 5,000 RPM

Power-Driven Att. Drive Motor: 1.0kw

Backworking Attachment

Chucking Diameter: 32mm (1-1/41")

Length for Front Ejection: 125mm (4-59/64")

Parts Projection Length: 45mm (1-49/64")

4-Spindle Backworking Unit

Drilling Capability Stationary Tool: 13mm (1/2")

Tapping Capability Stationary Tool: M10xP1.5

Sub Spindle Speed: 7,000 RPM

Sub Spindle Motor (continuous/15min): 2.2kw/3.7kw

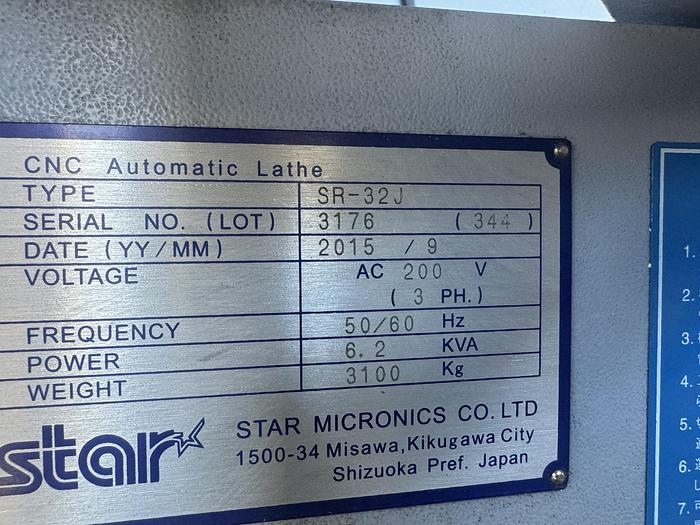

Electrics: 200/3/60

Machine: 106" x 51" x 69" 8,300 lbs

Coolant Pan: 51" x 32" x 21" 155 lbs
