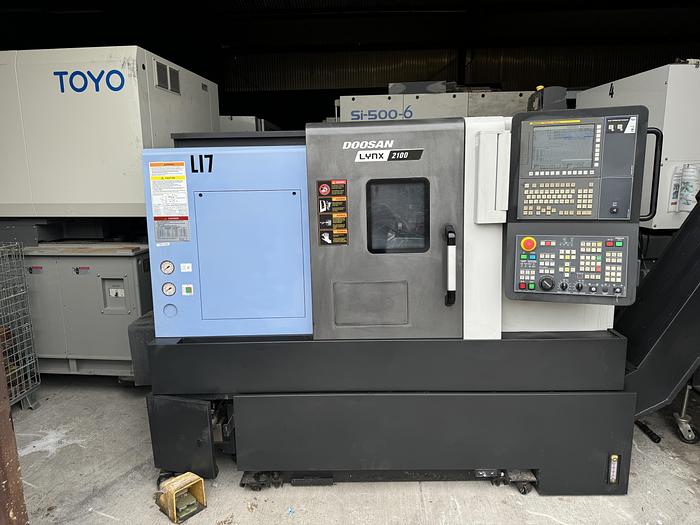

2018 Doosan LYNX 2100A

        SPINDLE BORE                                                                  2.6” (66mm)

            MAXIMUM SWING OVER SADDLE                                     15.7”

            MAXIMUM TURNING DIAMETER                                        13.8”

            MAIN MOTOR                                                                        20 HP

            TURRET STATIONS                                                             12

            BORING BAR DIAMETER                                                    1.5”

            SPINDLE SPEED                                                                   4500 RPM

            SPINDLE NOSE                                                                     A2-6

            SPINDLE TORQUE                                                               70.4 lbs.

            X-AXIS RAPID TRAVERSE RATE                                        1181 IPM

     Z-AXIS RAPID TRAVERSE RATE                                        1417 IPM

            X-AXIS TRAVEL                                                                     8.1”

            TURRET INDEX (SINGLE STEP)                                         0.15 sec.

            TAILSTOCK TAPER                                                              4MT

            DIMENSIONS                                                                        101” x 66” x 63”

            WEIGHT                                                                                 7,500 lbs.

EQUIPPED WITH:

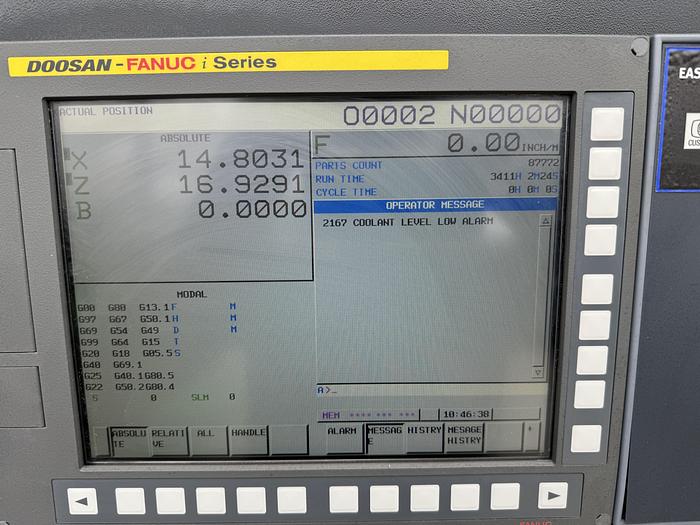

• FANUC I SERIES CONTROL
• 10.4-in. LCD MONITOR
• TOOL SETTER
• 12-STATION TURRET
