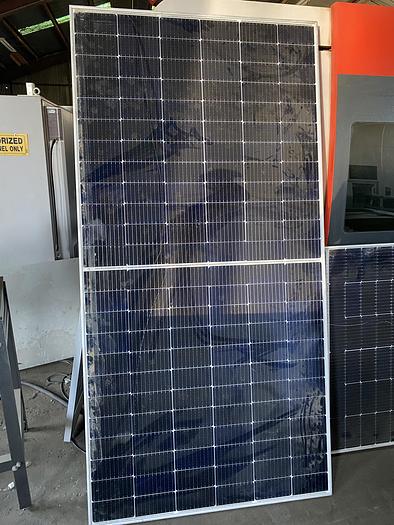

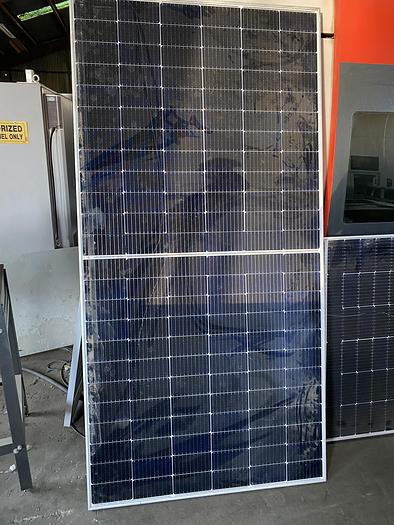

2023 Canadian Solar CS6W-540MB-AG

• STC Power Rating 540W
• PTC Power Rating 512.26W 1
• STC Power per unit of area 19.6W/ft2 (210.6W/m2)
• Peak Efficiency 21.06%
• Power Tolerances 0%/+10%
• Number of Cells 144
• Nominal Voltage not applicable
• Imp 13.08A
• Vmp 41.3V
• Isc 13.9A
• Voc 49.2V
• NOCT 41°C
• Temp. Coefficient of Isc 0.05%/K
• Temp. Coefficient of Power -0.34%/K
• Temp. Coefficient of Voltage -0.128V/K
• Series Fuse Rating 25A
• Maximum System Voltage 1500V

Mechanical Characteristics

• Type Mono PERC
• Output Terminal Type Multicontact Connector Type 4
• Output Cable Wire Gauge 12 AWG
• Output Cable Wire Type PV Wire
• Output Cable Wire Length 15.7in (400mm)
• Frame Color Clear
• Backsheet Color White
• Length 89in (2,261mm)
• Width 44.6in (1,134mm)
• Depth 1.4in (35mm)
• Weight 61.3lb (27.8kg)
• Installation Method Rack-Mounted

Warranty and Certifications

• 80% Power Output Warranty Period 25yrs
• 90% Power Output Warranty Period 10yrs
• Workmanship Warranty Period 12yrs
• UL Fire Classification Type 1
• Compliances UL 1703, IEC 61215, IEC 61730, CEC
• CSI Listed No
• 1. PTC rating calculated using 41°C as the NOCT (Nominal Cell Operating Temperature)
