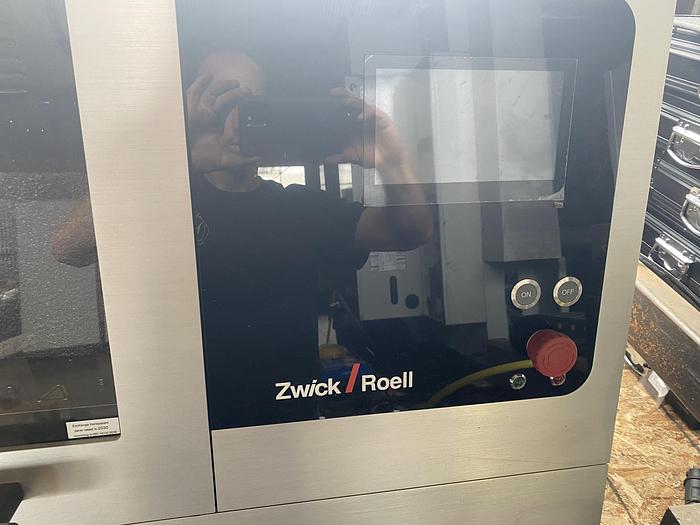

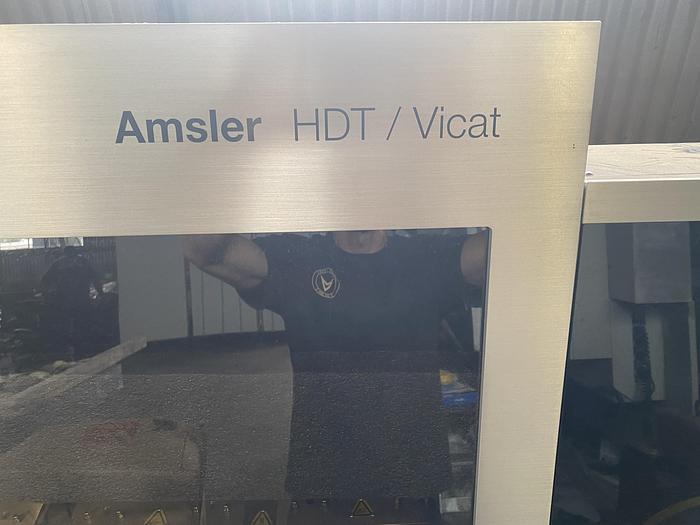

2022 Zwick/Roell Amsler HDT/VIcat

Description Value

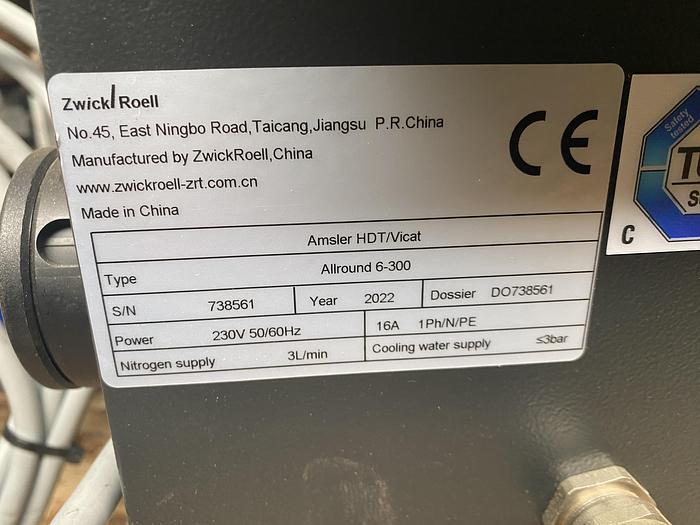

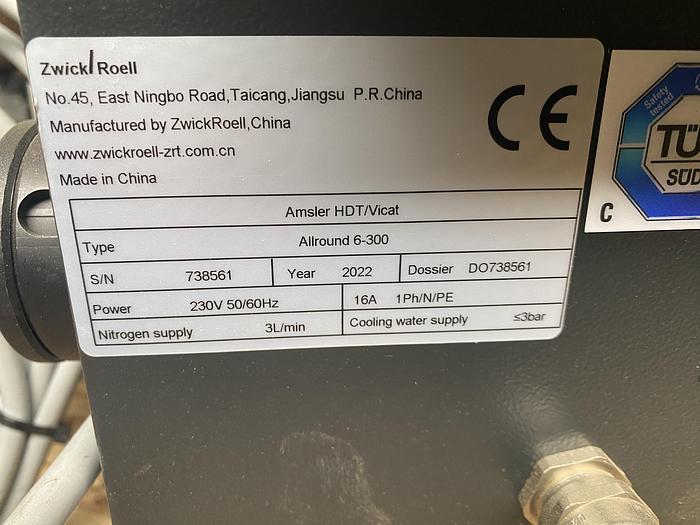

Type Amsler HDT/Vicat Allround 6-300

Item No. 109493612

Measuring stations, default 2

Measuring stations, possible 6

Controllable temperature range +20 ... +300 °C

Temperature for creep test, max. 288 °C

Test time for creep test, max. 48 hours

Temperature sensor Pt 100

1 x per station and 1 x per bath

Heat transfer fluid holding capacity, min. 18 l

Temperature measurement

Display accuracy at 300 °C ± 0.5 °C

Spatial temperature gradient ± 0.1 °C

Temperature measurement resolution 0.01 °C

Displacement measurement

Measurement range 1 ... 16 mm

Displacement measurement resolution 0.001 mm

Measurement accuracy of the sensor ± 0.002 mm

Measurement accuracy of the system ± 0.01 mm

Measuring system Linear displacement transducer (digital)

Dimensions

Height, door closed 878 mm

Height, door open 1430 mm

Width1280mmDepth700mmWeight, with two measuring stations, without weights, without heat transfer fluid, approx.196kgRequired PC interfaceEthernetCoolingAutomatically or manually controlled via softwareAmbient temperature+10 ... +35°CTemperature during storage and transport-25 ... +55°CRelative humidity (non-condensing)20 ... 90%Average noise level at vmax measured at 1 m distance from the front of the machine< 55dB(A)Permissible height in relation to sea level for storage and operation≤ 2000mOperationIndoorPower input specificationsPower supply120V, 1Ph/N/PEPermissible voltage fluctuation± 10%Current consumption, max.30APower consumption (full load), approx.3.8kVAPower frequency50/60HzstandardsOvervoltage category to IEC 61010-1II
