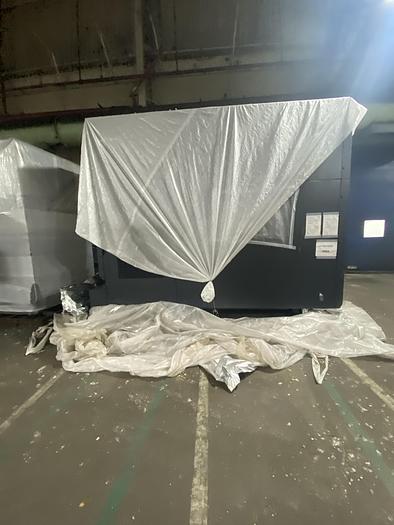

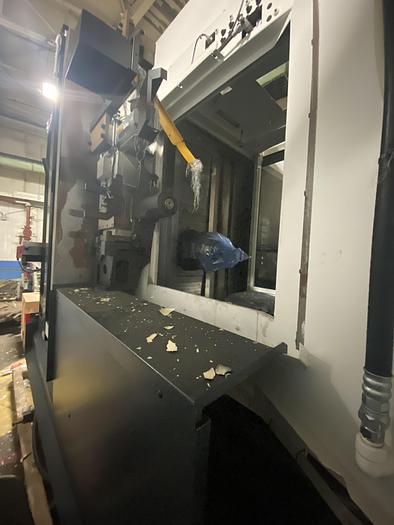

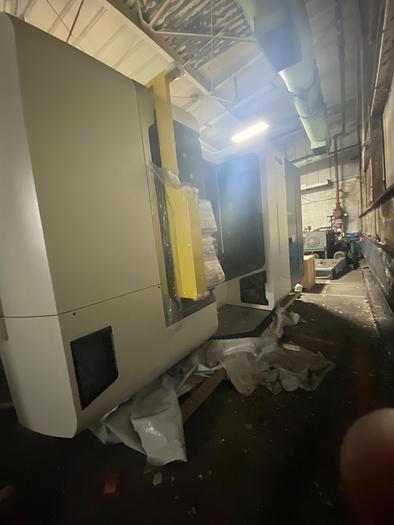

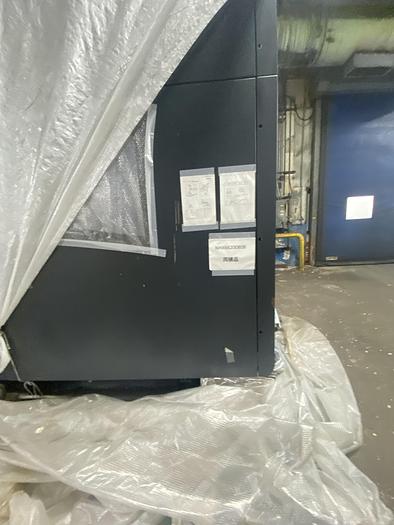

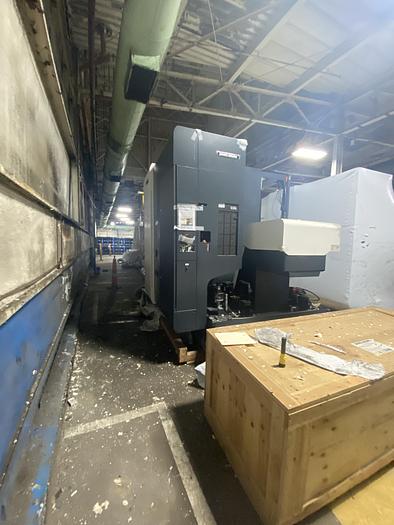

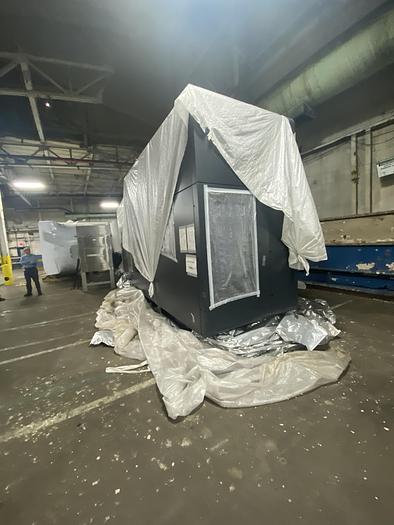

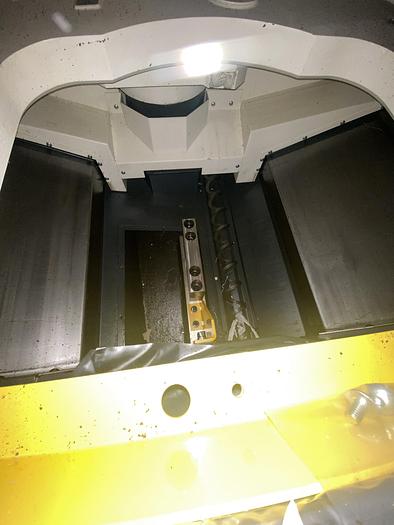

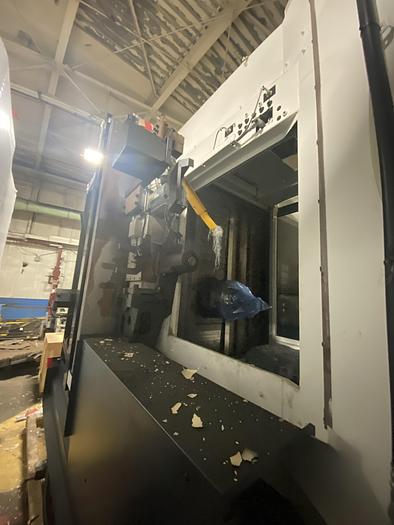

DMG MORI NHX6300 NEW NEVER CUT A CHIP

DMG MORI NHX-6300HORIZONTAL MACHINING CENTER

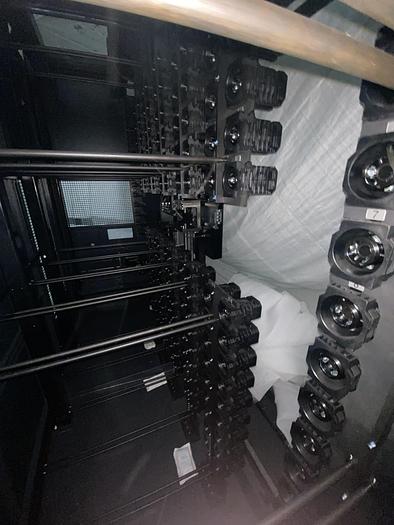

Specifications:160 Position ATC

X-AXIS TRAVEL ......................................... 41.3"

Y-AXIS TRAVEL ......................................... 35.4"

Z-AXIS TRAVEL ......................................... 40.6"

DISTANCE FROM PALLET CENTER TO SPINDLE GAUGE PLANE ....... 2"~42.5"

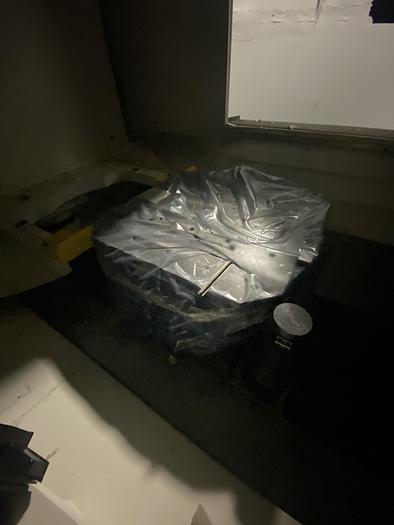

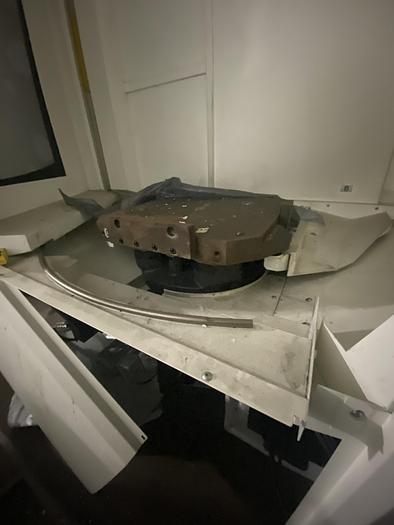

PALLET WORKING SURFACE ................................ 24.8" X 24.8"

PALLET LOADING CAPACITY ............................... 3,300 LBS

MAX WORKPIECE SWING DIAMETER .......................... 41.3"

MAX WORKPIECE HEIGHT .................................. 51.1"

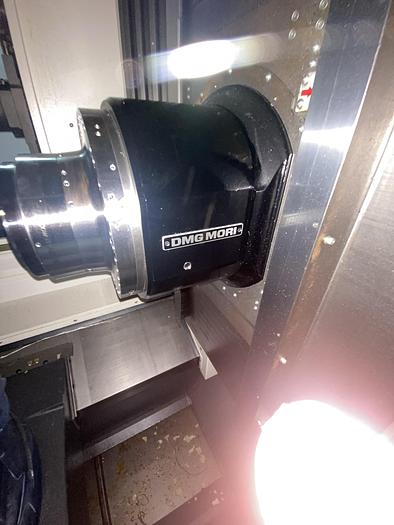

SPINDLE SPEED ......................................... 16,000 RPM

FEEDRATE RAPID TRAVERSE RATE .......................... 2,362 IPM

CUTTING FEEDRATE ...................................... 2,362 IPM

TOOL STORAGE CAPACITY RING TYPE ....................... 60

TYPE OF TOOL SHANK .................................... HSK 63

MAX TOOL DIAMETER ............... 4.3"

MAX TOOL LENGTH ....................................... 24.8"

TOOL CHANGING TIME Tool-to-tool ....................... 2.05 SEC.

NUMBER OF PALLETS ..................................... 2

PALLET CHANGING TIME .................................. 20 SEC.

SPINDLE DRIVE MOTOR ................................... 75 HP

MACHINE WEIGHT .............................. 41,500 LBS
