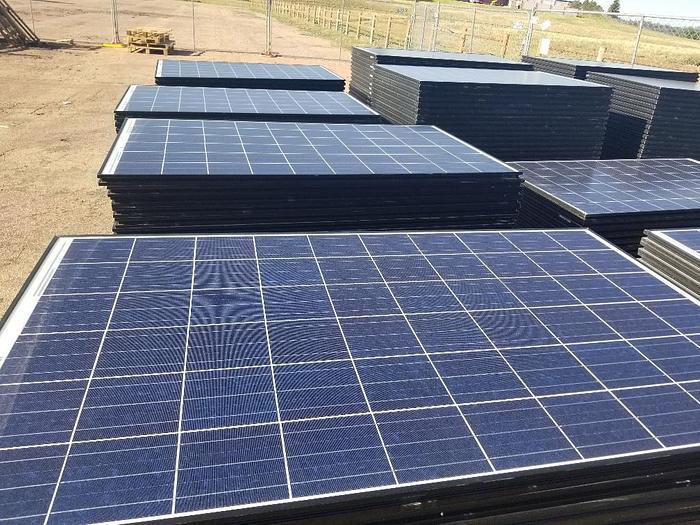

REC 260 Watt Solar Panel REC260-PE-ZLINK

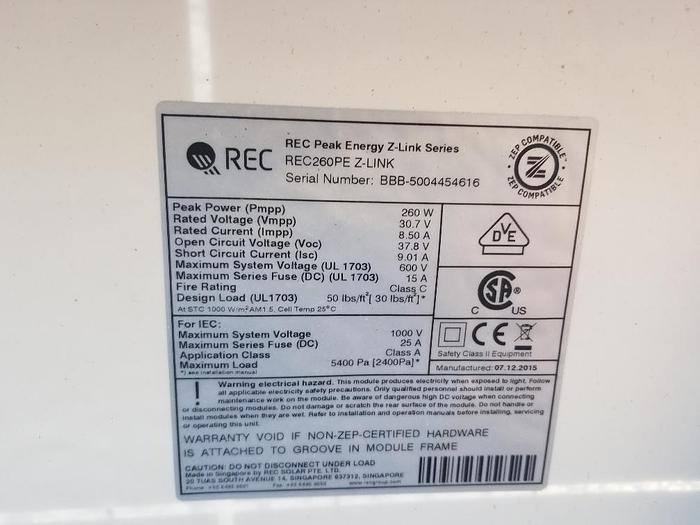

Electrical Characteristics STC Power Rating 260W PTC Power Rating 234.3W 1 STC Power per unit of area 14.6W/ft2 (157.6W/m2) Peak Efficiency 15.76% Power Tolerances 0%/+2% Number of Cells 60 Nominal Voltage not applicable Imp 8.5A Vmp 30.7V Isc 9.01A Voc 37.8V NOCT 45.7°C Temp. Coefficient of Isc 0.02%/K Temp. Coefficient of Power -0.4%/K Temp. Coefficient of Voltage -0.102V/K Series Fuse Rating 15A Maximum System Voltage 600V Mechanical Characteristics Type Polycrystalline Silicon Output Terminal Type Multicontact Connector Type 4 Output Cable Wire Gauge 12 AWG Output Cable Wire Type PV Wire Output Cable Wire Length 35.4in (900mm) Frame Color Clear Backsheet Color White Length 65.6in (1,665mm) Width 39in (991mm) Depth 1.5in (38mm) Weight 39.7lb (18kg) Installation Method Rack-Mounted Warranty and Certifications 80% Power Output Warranty Period 25yrs 90% Power Output Warranty Period 12yrs Workmanship Warranty Period 10yrs UL 1703 Fire Classification Type 1 Compliances UL 1703, IEC 61215, IEC 61730, TUV CSI Listed Yes 1. California Solar Initiative (CSI) list of Eligible Modules
