2012 Summit 3080

SPECIFICATIONS: 30″-5 Series

Capacities

Swing over bed 29.9″

Swing over cross slide 20.5″

Swing over gap 37.4″

Headstock

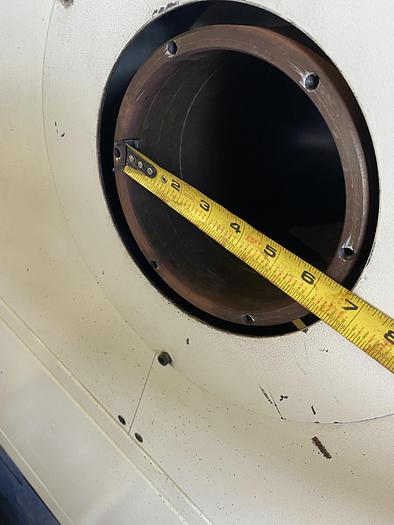

Hole Through Spindle 6″

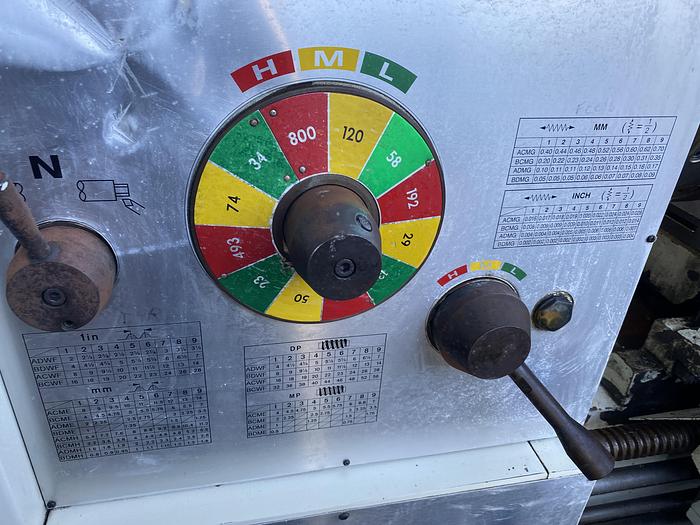

Spindle speeds (17) 7.5 – 1015 RPM

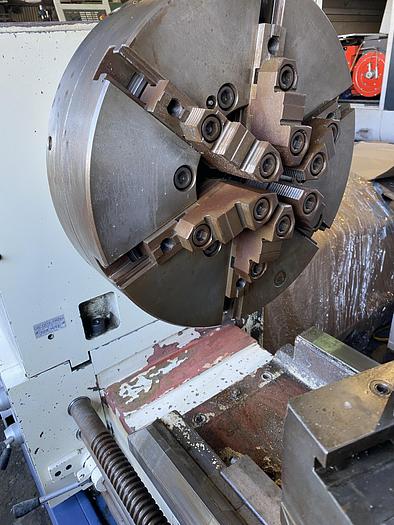

Spindle Nose D1-11 Camlock

Threads

Threads per inch – number/range (76) 1.6 – 60

Metric threads – number/range (76) .5 – 180

Tailstock

Travel spindle barrel 8.8″

Diameter of spindle barrel 6″

Tailstock center #6 MT

Bed

Width of bed 22″

Motor

Main drive motor 20 HP

Miscellaneous

Shipping weight (approximate) 10,780 lbs.
